what is the minimum thickness for precision stamping parts
Minimum Thickness: 0.01mm for Ultra-Thin Foils

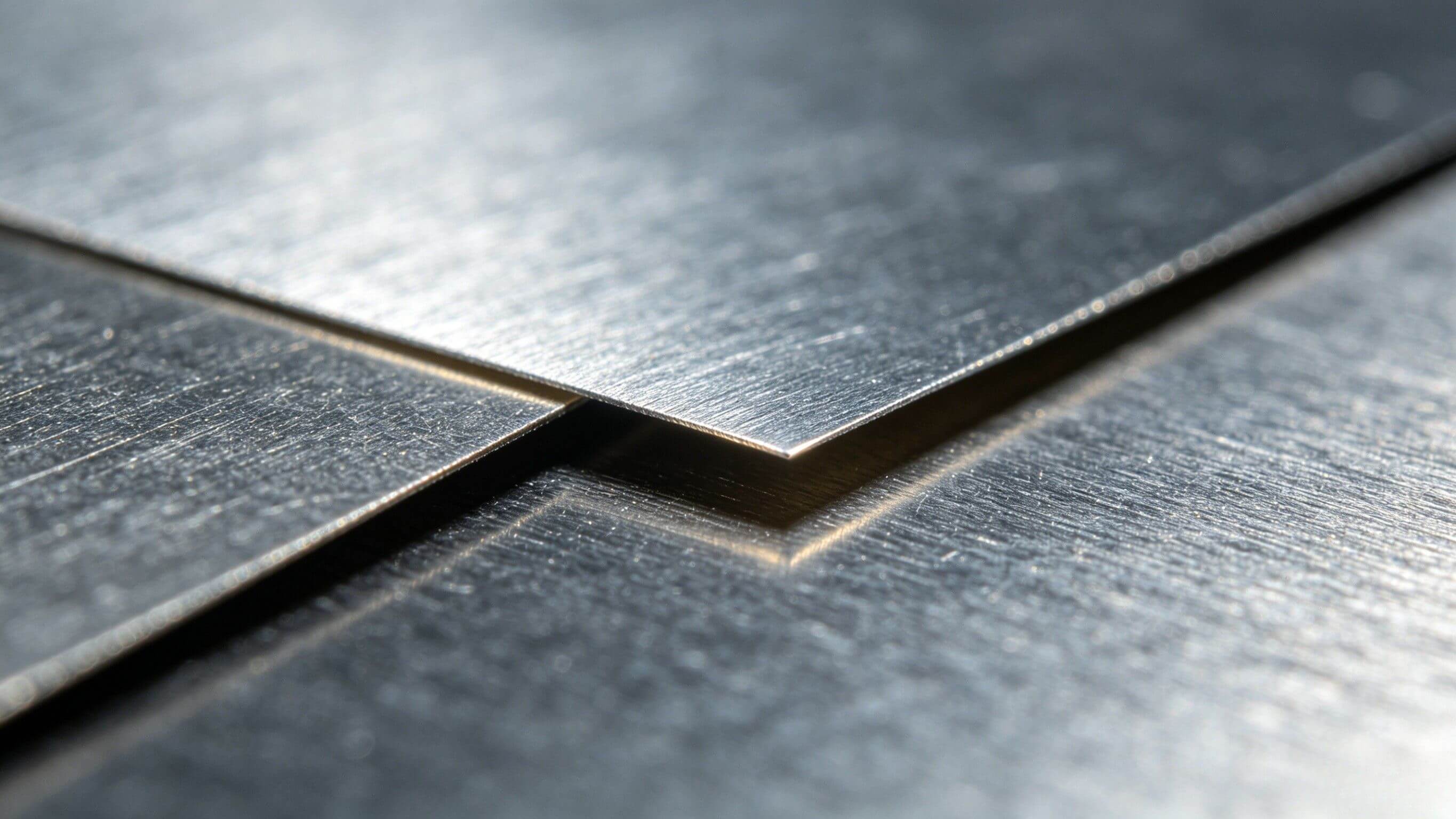

In industrial practice, the minimum practical thickness is 0.01mm (10μm) for soft, ductile materials like copper, aluminium, or stainless steel foil, using ultra-precision dies and high-speed presses.
Standard precision stamping: 0.1mm–3.0mm (85% of applications fall between 0.3mm–1.2mm).
Ultra-thin specialty stamping: 0.01mm–0.1mm (for microelectronics, medical shims, and EMI shielding).
Typical tolerance: ±0.005mm to ±0.01mm for thickness under 0.5mm.
Key Factors Determining Minimum Thickness

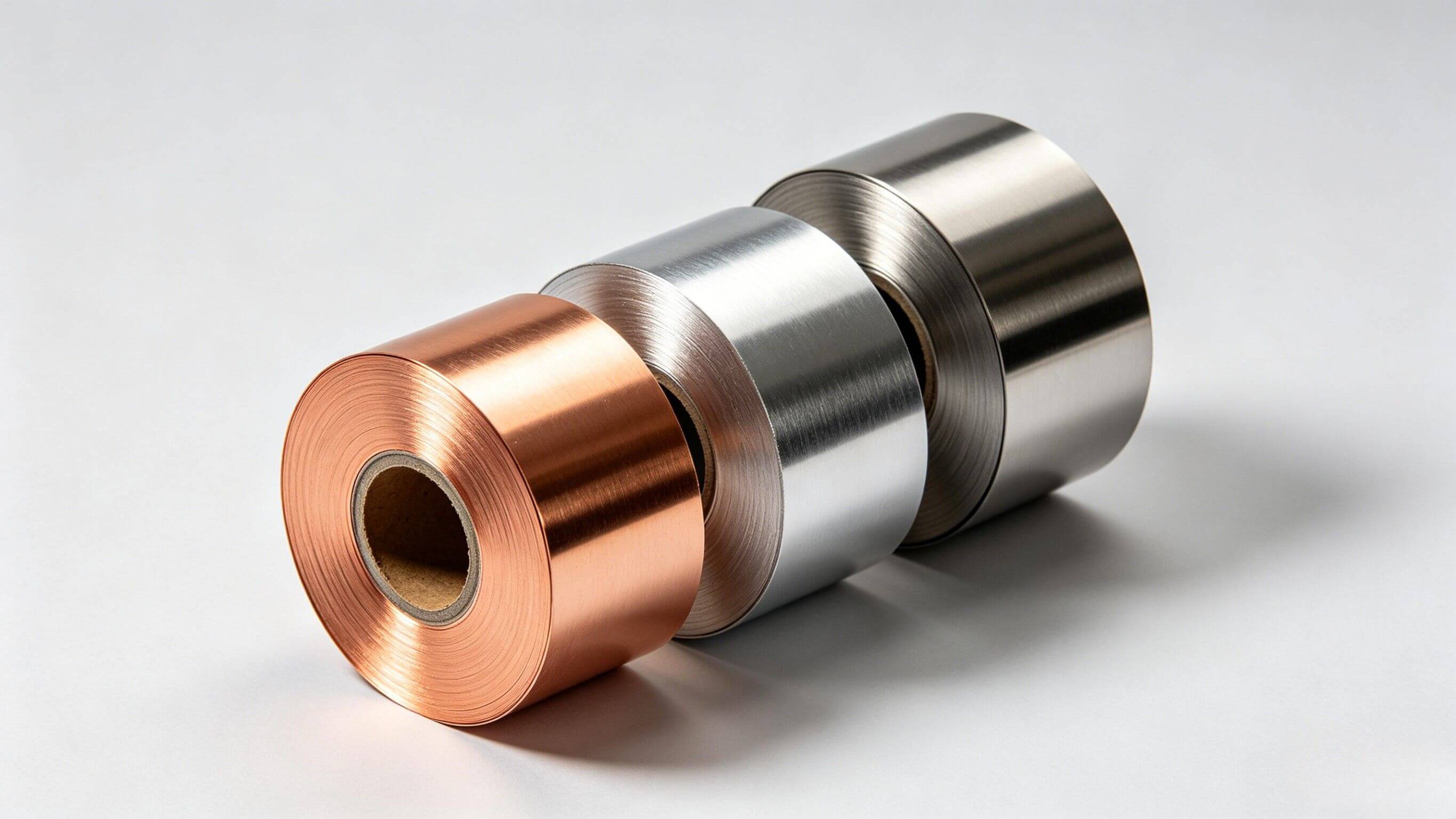

Material Selection
●Stainless steel (304/316): Minimum 0.02mm; excellent for strength and corrosion resistance.
●Copper (C1100) / Brass: Minimum 0.01mm; high ductility and conductivity.
●Aluminium (1050/6061): Minimum 0.03mm; lightweight and formable.
●Silicon steel: Minimum 0.05mm; for motor laminations.
Tooling & Equipment

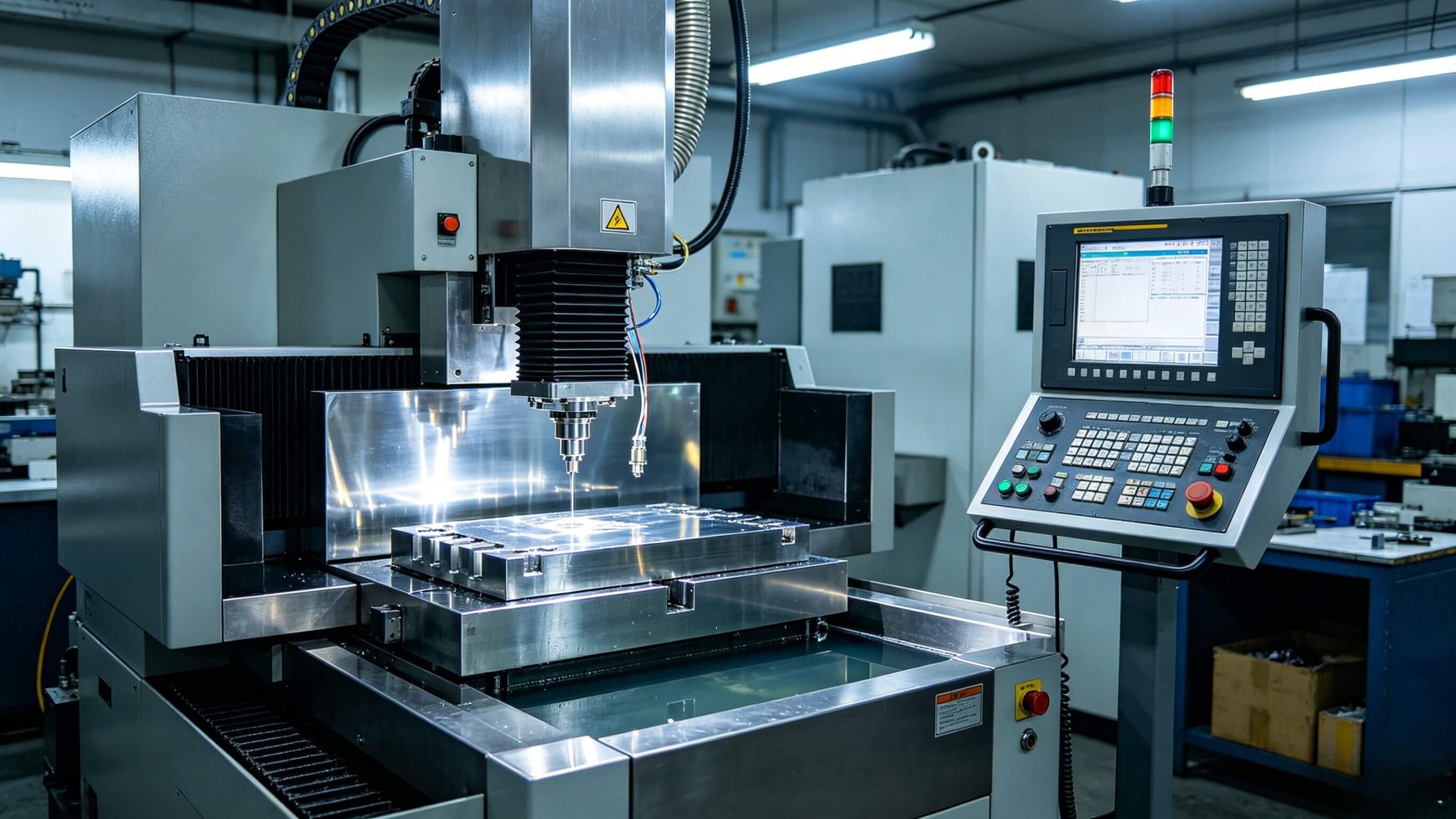

●Ultra-precision dies: Wire EDM + mirror EDM (±1μm accuracy).
●High-speed presses: 100–200 ton, 40–1400 strokes/min.
●Flatness control: ±0.01mm to avoid feeding issues.
Part Design Rules
●Hole diameter ≥ material thickness (prevents punch breakage).
●Minimum bend radius ≥ 0.5× thickness.
●Simple geometry for ultra-thin parts (<0.05mm).
Industry Applications by Thickness

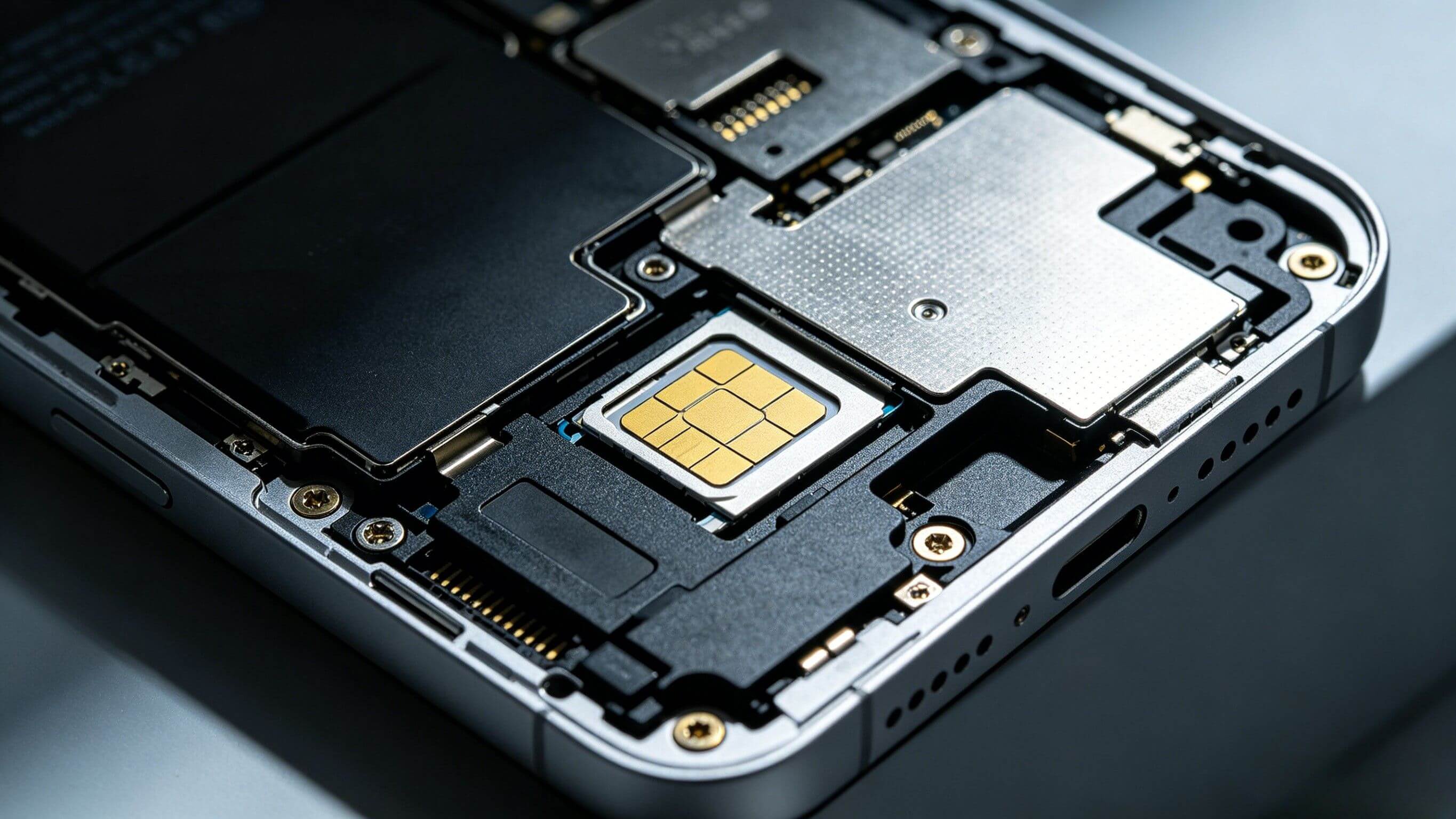

●Electronics (0.1mm–0.3mm): SIM trays, battery contacts, shielding cans (±0.005mm tolerance).
●Medical (0.01mm–0.05mm): Surgical shims, needle components, implant parts.
●Automotive (0.8mm–1.5mm): Terminals, sensor brackets, connector shells (±0.02mm).
●Aerospace (0.05mm–0.5mm): Lightweight structural shims, EMI shielding.
Why Choose Professional Precision Stamping?
Working with 0.01mm–0.1mm materials demands strict process control:
●100% inspection: Machine vision (±2μm accuracy).
●ISO 9001:2015 and ASME Y14.5 compliance.

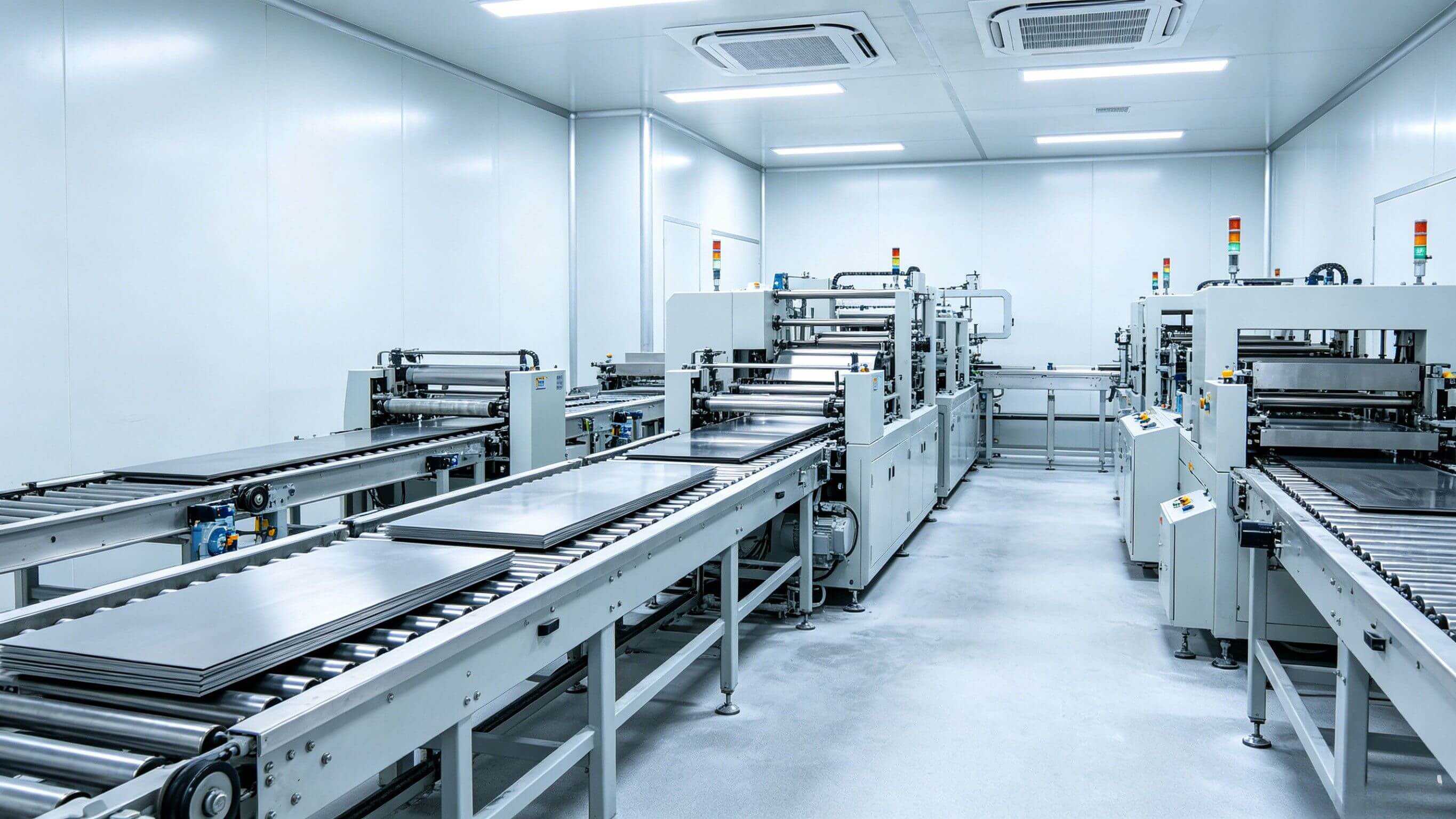

●Cleanroom production for medical/electronics parts.
Conclusion
The minimum thickness for precision stamping parts is 0.01mm, achievable with premium materials, ultra-precision tooling, and advanced equipment. For most industrial applications, 0.1mm–1.2mm offers the best balance of quality, cost, and manufacturability.
Need help selecting the right thickness and material for your project? Contact us for a custom precision stamping solution.
